How to Configure WireGuard VPN Client on Archer AX55

Please follow the steps below to set up and configure the WireGuard VPN Client on the Archer AX55:

1. Download the configuration file from your VPN provider.

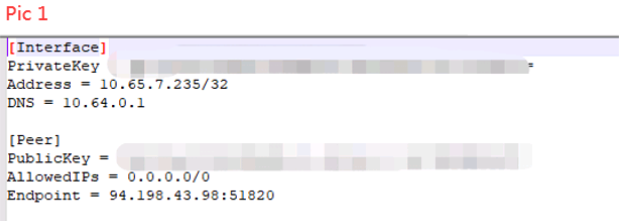

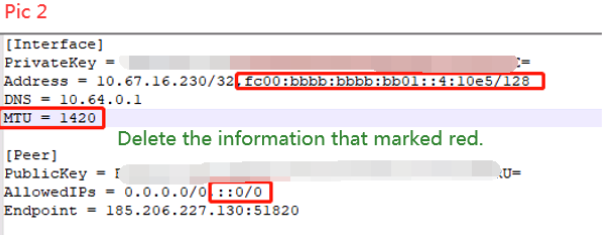

2. We currently support some basic parameters of the WireGuard configuration file as Pic 1. If the configuration file you are using includes IPv6 address, MTU or many more (example as Pic 2), please edit the file and delete those parameters, then save the file.

3. Visit http://tplinkwifi.net, or the IP address assigned to your router, and log in with your TP-Link ID or the password you set for the router. Go to Advanced > VPN Client.

4. Enable VPN Client, and click SAVE.

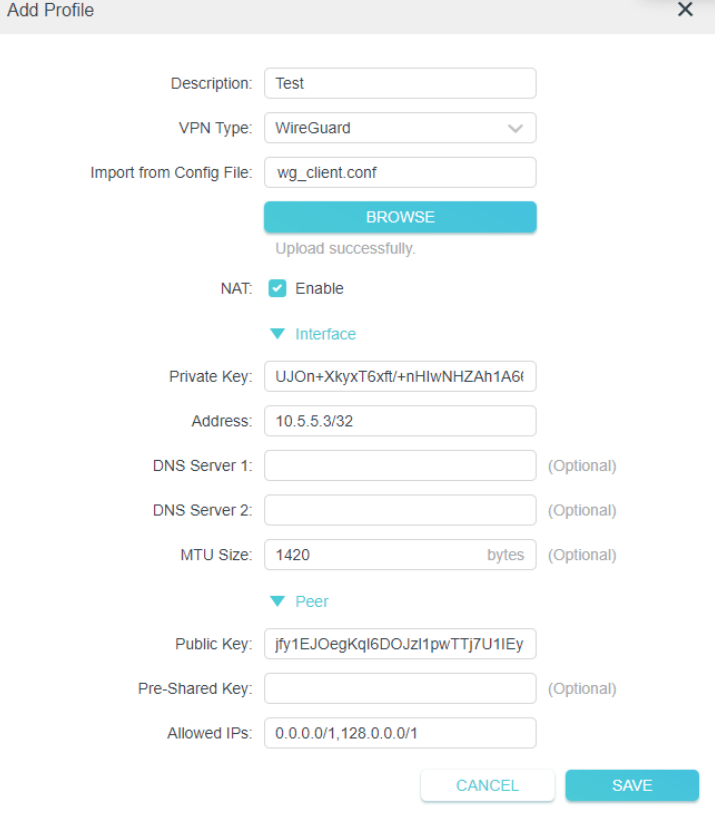

5. Click Add button in the up-right of the Server List, specify a description for the VPN, and choose WireGuard as the VPN Type, click BROWSE to import the configuration file provided by your VPN provider, then click SAVE.

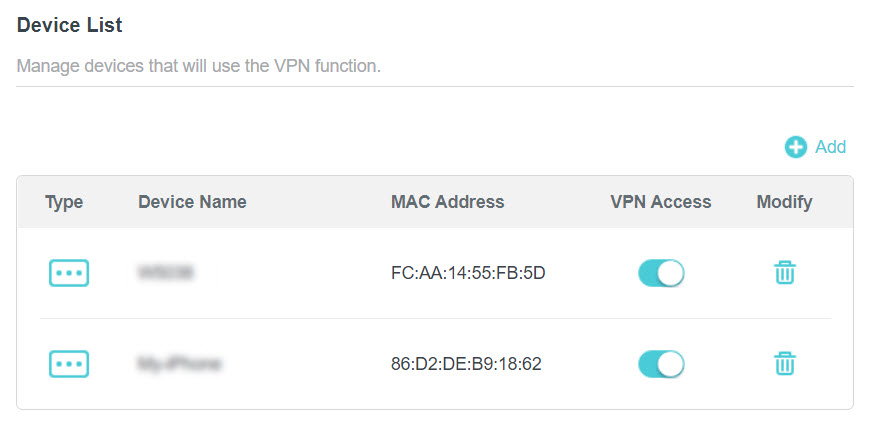

6. Check and enable the WireGuard in the Server List, add and enable the VPN Access for the devices that will use the VPN function.
