How to setup Wireguard client on Asuswrt-Merlin

  1. Download the WireGuard config file with the selected server and configuration from your client area.

  2. Launch the web browser and enter the IP address of your router, which is usually 192.168.1.1

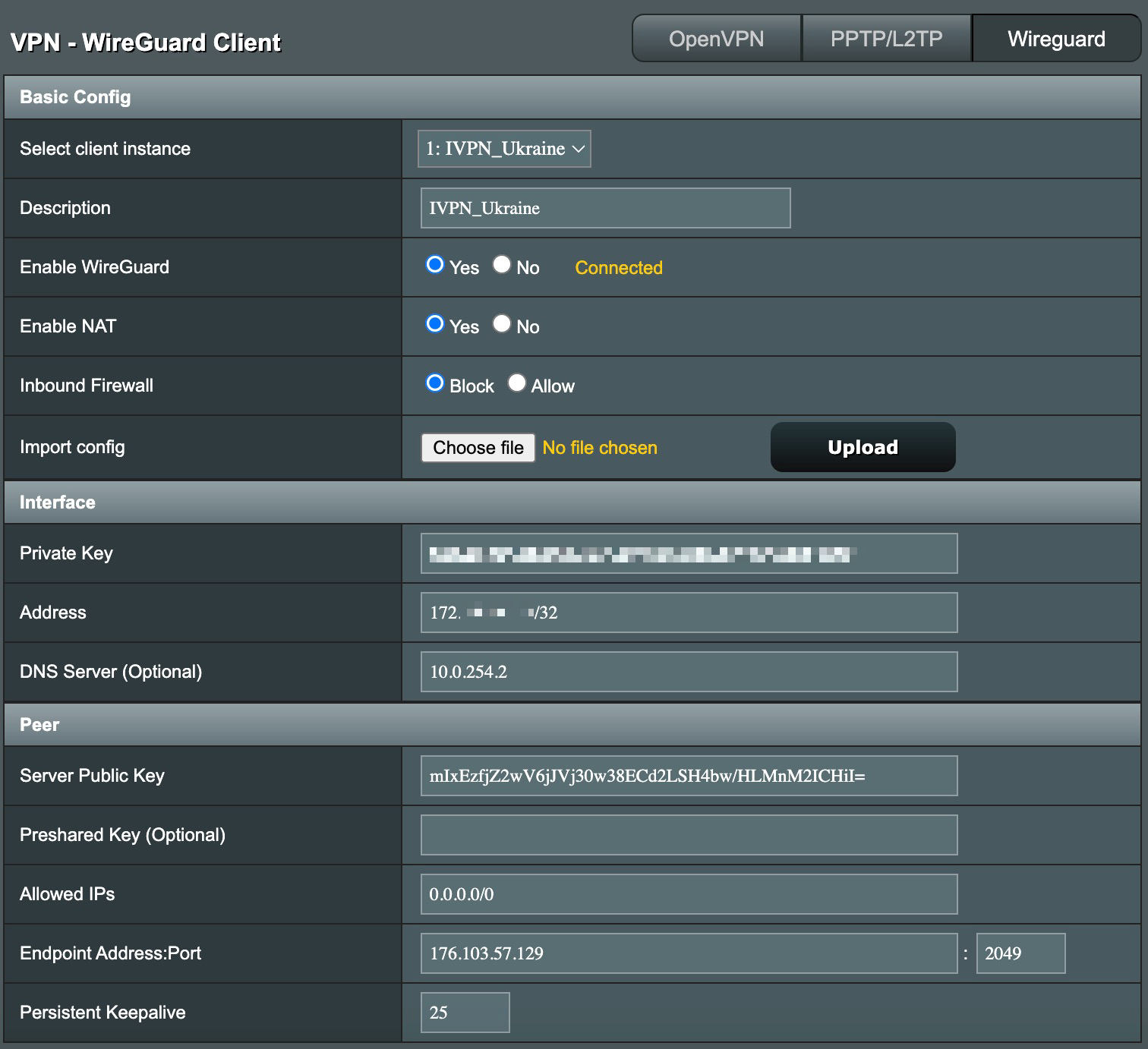

  3. Once logged in, navigate to VPN – VPN Client tab - WireGuard

  4. Click on the Choose file button. Select the downloaded config file, and hit the Upload button

  5. Put any name into the Description field, set Enable WireGuard to Yes, and click Apply

  6. Navigate to VPN - VPN Director area, scroll down, and click on the + icon to add a new rule for routing devices on your local network via the WireGuard interface

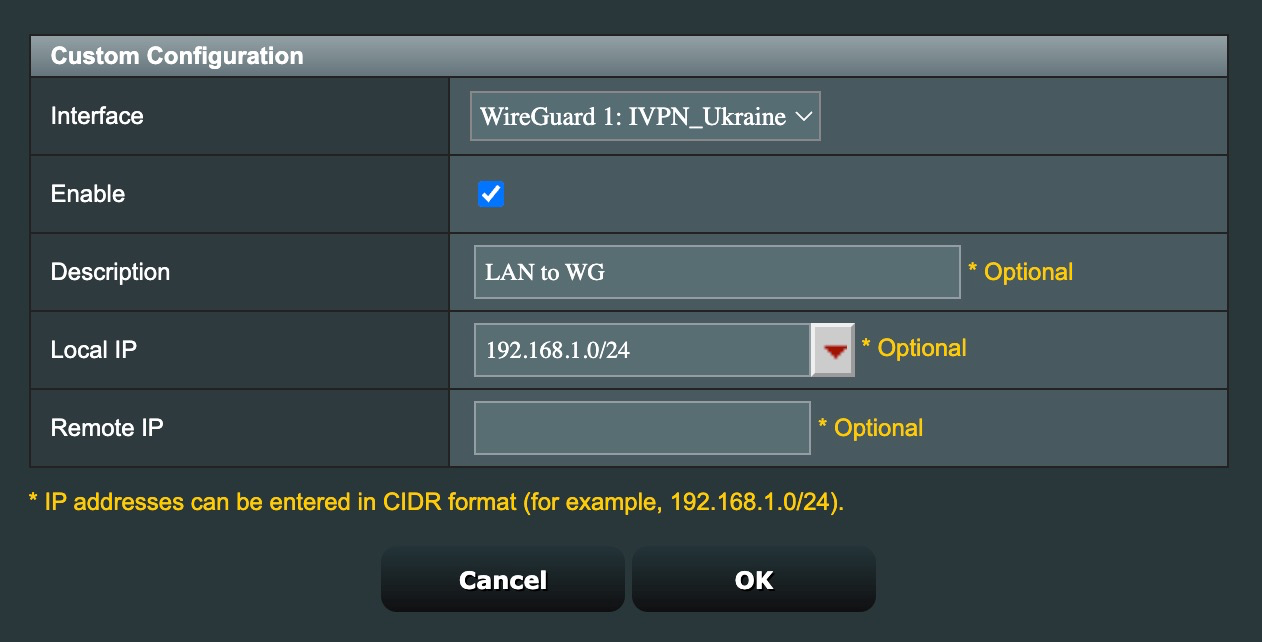

  7. Fill in the following configuration:

    • Interface - select the recently created WireGuard interface
    • Enable - check
    • Description - give it any name
    • Local IP - the address of your local network (e.g. 192.168.1.0/24) or IP address/es of your local network device/s separated with a comma if you wish to use VPN only on specific device/s

  8. Click OK and Apply
